    Web page segmentation

    The Internet talks a lot about article extraction - taking a page and deciding what the real content is. Hell, I've written about the Uncanny valley of web scraping myself.

    Article extraction is such a wide spread problem that a bunch of API's exist to help you solve it. Everything from a fringe feature in five or ten semantic API's, to startups devoted wholly to extracting articles - like Diffbot.

    But what if you don't want to extract an article? What if all you want is: this is the header, here is a sidebar, these are ads, here is content, oh and this is a footer, btw those are comments.

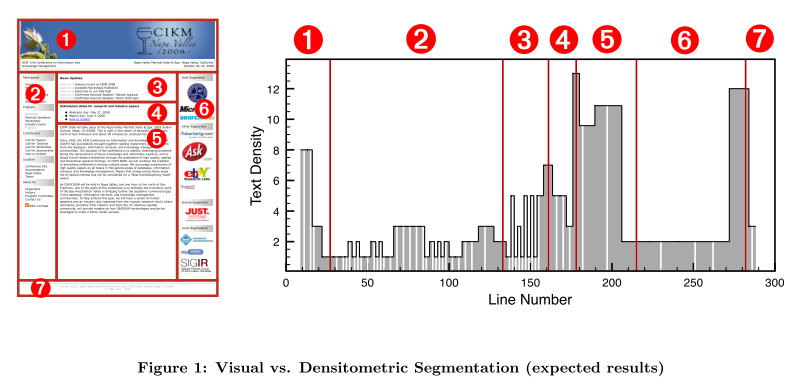

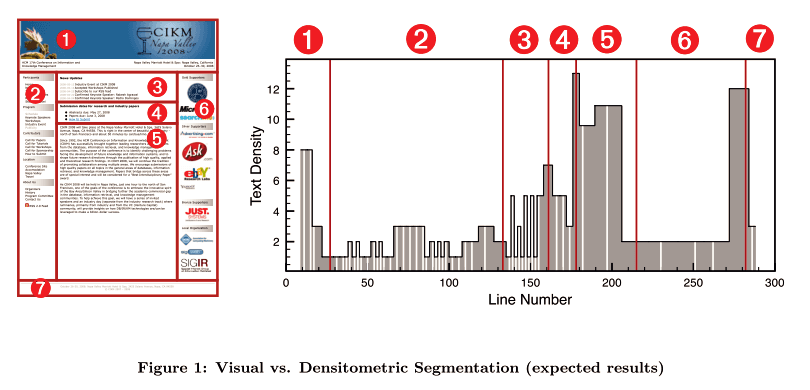

    Visual vs. Densitometric segmentation (expected)
    Visual vs. Densitometric segmentation (expected)

    Suddenly you are shit out of luck.

    Sure, it makes sense the API's wouldn't let you do this - it's supposedly their secret magic sauce. Right?

    Except it isn't.

    Analyzing the different implementations of article extractors reveals that far from using a methodical approach of marking up different bits of a page, they mostly work as tree pruning algorithms - go through DOM, remove anything that's not promising, end up with the juicy article.

    Nothing you could use to create a web page segmentor ...

    Turns out, there is but a single very useful paper devoted to web page segmentation - Christian Kohlschütter's A Densitometric Approach to Web Page Segmentation.

    Yep, the same guy who later wrote _Boilerplate Detection using Shallow Text Features, _which later turned into Boilerpipe, one of the best (most certainly the quickest) libraries web content extraction.

    In the paper Kohlschütter explains that only three approaches exist:

    • segmenting visually
    • linguistic approach
    • densitometric approach

    Visual segmentation is perhaps the easiest to understand - you look at a website and as a person you instantly know where different sections are. A computer vision algorithm could do something similar. With the caveat you now have to render every page, then run a visual learning algorithm and do a bunch of things that are computationally very expensive.

    The linguistic approach is somewhat more reasonable - take a page, look at distributions of words and syllables and what have you (quanititive linguistics this is called) and decide based on that. Problem here is, this only works well for large blocks of text ... the linguistic content in, say, a header might be somewhat lacking.

    Block fusion algorithm

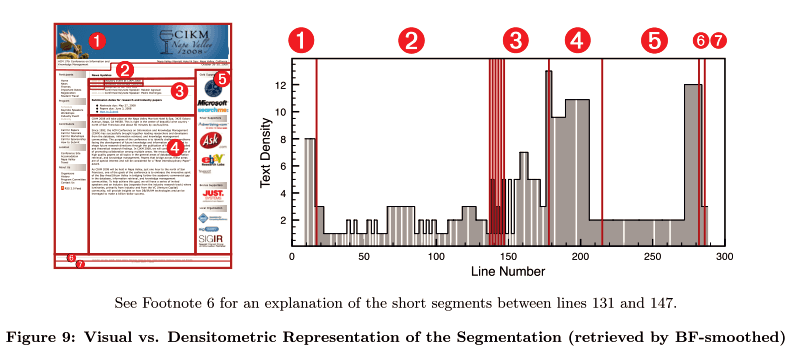

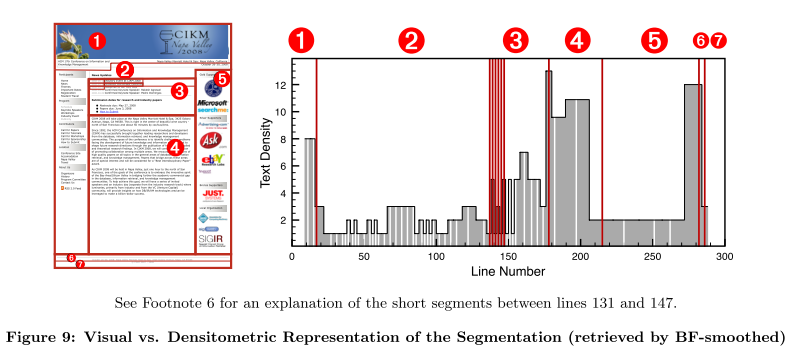

    Visual vs. Densitometric (actual)
    Visual vs. Densitometric (actual)

    Kohlschütter's densitometric approach has a tendency to work as well as a visual algorithm, while being as fast as a lingustic approach ... bloody marvelous!

    The idea is basically this:

    • walk through nodes
    • assign a text density to each node -> number-of-tokens / number-of-'lines'
    • merge neighbor nodes with the same densities
    • repeat until desired granularity is reached

    The simplicity of this algorithm is just brilliant. Even better is the fact they managed to get it down to 15ms per page on average. For comparison's sake - the time it takes Readability to clean up a page is counted in seconds, an average response time from Diffbot (visual approach) is about 10 seconds per page.

    Yep, that fast.

    And for the icing on the cake - most main bits of the Block Fusion Algorithm are already implemented deep inside the bowels of Boilerpipe. You just have to look hard enough.
