    Wow API Gateway v2 is fast

    Your brain keeps solving problems when you aren't looking. One morning you jump out of bed and think "OMAIGOD I'm an idiot! It's so obvious!"

    And you rush to your project, try your idea, and ...

    ... and you might still be wrong πŸ˜…

    Like when I had the brilliant idea to use eventual consistency to speed up the AWS Lambda that saves your πŸ‘πŸ‘Ž vote at the bottom of this email and I couldn't have been more off base. Classic over-confidence that makes you tank an interview because you read somewhere that $Technique Is For Speed.

    Trying eventual consistency to improve load times

    The idea behind eventual consistency is to delay database writes. Does everything need to happen in-request or can you do some of the work async?

    My Lambda makes 2 writes to DynamoDB in a GraphQL Mutation:

    1. Update a vote counter
    2. Save the vote
    // Updates thumbsup/down count in a widget
    const widgetUpdateResult = await updateItem({
      Key: { userId, widgetId },
        "SET thumbsup = thumbsup + :thumbsup, thumbsdown = thumbsdown + :thumbsdown",
      ExpressionAttributeValues: {
        ":thumbsup": thumbsup ? 1 : 0,
        ":thumbsdown": thumbsdown ? 1 : 0,
      ReturnValues: "ALL_NEW",
    const widget = widgetUpdateResult.Attributes || {}
    // Saves a new vote in the feedbacks table
    const feedback = await saveFeedback(
        answers: {},

    This is a stupid design.

    You could count the votes for each widget when you need the number. Why am I manually counting this? πŸ™„

    You could save the vote, then use DynamoDB Streams to update the count. User-facing lambda performs a quick save, triggers additional lambdas to update meta data.

    Test your hypothesis

    Rule number 1 of performance tweaks – measure. Serverless Performance is a strange beast and you have to ask the computer where it hurts. You can't guess.

    We removed a DynamoDB write and ran the same mutation a bunch of times in a GraphQL Playground. While streaming.

    mutation ($userId: String!, $widgetId: String!, $thumbsup: Boolean) {
      widgetVote(userId: $userId, widgetId: $widgetId, thumbsup: $thumbsup) {

    The mutation sends a userId and widgetId to identify what you're feedbacking and a thumbsup to say πŸ‘. In retrospect the vote type should've been a string.

    Our unscientific test[^1] gave a 258ms average response time over 14 runs. Doesn't feel like much of an improvement.

    We tried the original code and got 253ms average response times. Faster than with my brilliant idea.

    Is it the Apollo overhead?

    Okay if database writes aren't slow ... what is? Could it be that Apollo Server has massive overhead? It's pretty heavy after all.

    We upgraded from an old version of apollo-server-lambda (2.5.1) to the latest (3.6.1) and added memoization to cache the server between requests. AWS Lambda caches values in global scope.

    // cached server instance
    let server: ApolloServer | null = null
    function getServer() {
      if (!server) {
        // instantiate server if doesn't exist
        server = new ApolloServer({
          typeDefs: getTypeDefs(),
      return server
    // creates the Lambda request handler
    export const handler = getServer().createHandler({
      expressGetMiddlewareOptions: {
        cors: {
          origin: "*",
          credentials: true,

    Wrap server = new ApolloServer in a function and use global file scope to cache the value between requests. If instantiating overhead is the problem, this is gonna solve it.

    The result was a 249ms average response time. Within the margin of error for my benchmarking approach[^1]. πŸ’©

    Wait is the Lambda slow at all??

    At this point it looks like the benchmark may be dominated by round-trip times to us-east-1, an AWS region, and AWS's internal machinery. How fast is the Lambda itself?

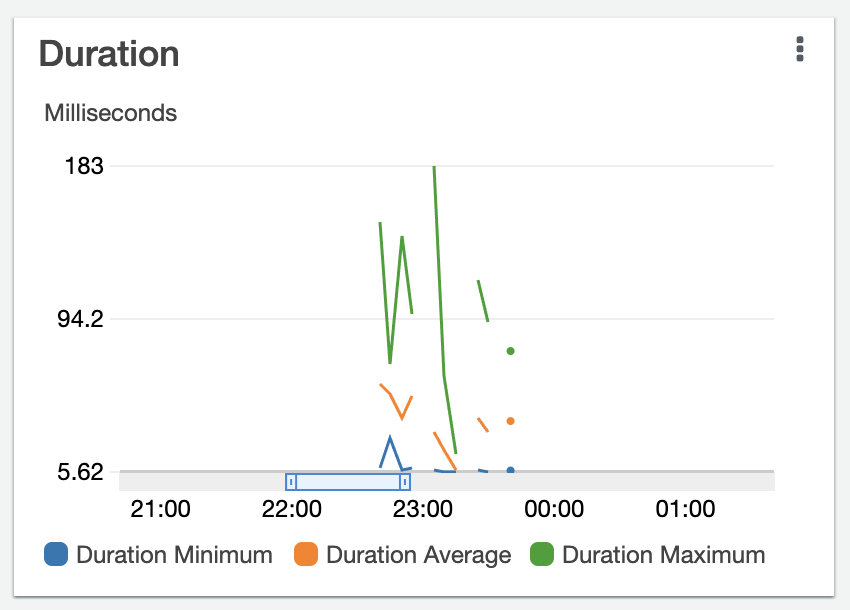

    Duration metrics from AWS
    Duration metrics from AWS

    The slowest invocations are around 95ms with averages hovering around 50ms ...

    All this effort to speed up our code and our code isn't even the slow part. That was dumb. πŸ™ˆ

    Best thing I learned in college: Amdahl's Law – speeding up the fast part of your system won't do shit for performance.

    API Gateway v2, a hail mary

    On stream, David Wells suggested I give API Gateway v2 a shot. It's cheaper, newer, and faster. Worth a shot ...

    I'm using the Serverless Framework, which made changing to API Gateway v2 easy.

        handler: dist/graphql.handler
          - httpApi: # was http:
              path: /graphql
              method: GET
          - httpApi: # was http:
              path: /graphql
              method: POST

    Change http: event triggers to httpApi: and move CORS configuration up to the provider block. That's it.

    169ms average response times. A 33% improvement 🀩

    Just goes to show you πŸ‘‰ you can't blindly grab every performance technique you read about online. You have to analyze your system.


    PS: API Gateway is how Lambdas connect to the outside world. You can read more about that in Serverless Handbook

    [^1]: the benchmarks in this article are imperfect. Directionally useful, but running on a domestic internet provider while streaming video. Ethernet connection into a Comcast router. All benchmarks ran under these same conditions. 12 to 15 rapid retries each.

    Published on January 17th, 2022 in Serverless, API Gateway, Lambda, GraphQL
